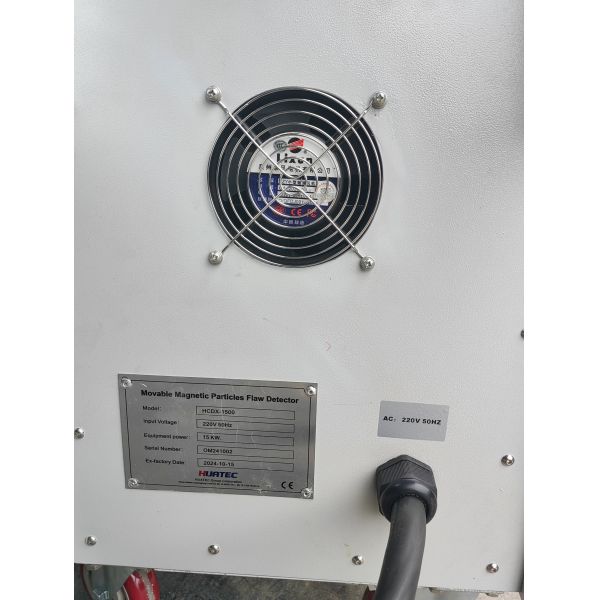

HCDX-1500 Industrial MPI Magnetizing & Demagnetizing Equipment 0-1500A Continuous Adjustable Current Quick Connector Probe Magnetic Inspection Device

  • 1
  • 2

Model Number : HCDX-1500

MOQ : 1 pc

Delivery Time : 20-30 working days after receipt of your payment

Payment Terms : T/T,Paypal

Power supply : 220V (two-phase three-wire system) ±10%, 50Hz, instantaneous current is about 100A;

Remanence stability : ≤±5%

Output cable : 2 copper-core flexible cables (120mm2) of 3 meters

Certification : CE

Price : USD2290/set - USD2590/set

Magnetization method : AC magnetization, DC magnetization (HWDC/FWDV)

Place of Origin : China

Packaging Details : Carton packing box

Supply Ability : 5sets/Month

AC current : 0-1500A

Brand Name : HUATEC

Contact Now

HCDX-1500 Industrial MPI Magnetizing & Demagnetizing Equipment 0-1500A Continuous Adjustable Current Quick Connector Probe Magnetic Inspection Device


The HCDX-1500 mobile magnetic particle flaw detector can magnetize parts in AC (or half wave DC magnetization HWDC). And with automatic demagnetization function, no additional demagnetization device is required.

8-bit MCU is adopted as the controller by this magnetic particles flaw detector, and the continuous regulation of magnetizing current can be realized through the precise collection of the AC zero voltage crossing signal and the signal of current regulation. It has the function of maximum current limit. With the function of phase controlled, the detector is suitable for both continuous technique and residual technique.


The current value is displayed on the analog ammeter or digital ammeter. The prod sets and trigger button are for operating in the narrow space.

The output current is reduced from the initial value to zero automatically when demagnetizing. Non-contact switch is adopted for the equipment.

This detector can be connected to the prod sets (handheld electrode sets) or spiral cable (flexible coil). Also there are some coils or electrodes designed for this equipment to become a simple inspection machine tool as option.


Technical parameters:

AC magnetization current

AC 0~1500A (effective value) continuously adjustable, short-time intermittent power, with power off phase control;

HWDC: 0~1500A (twice the average) continuously adjustable, short-time intermittent power;
Automatic demagnetizing current AC/HWDC 1500A~0 continuously adjustable, demagnetization time is shortened with the decrease of current
Output cable 2 copper-core flexible cables (120mm2) of 3 meters
Power supply 220V (two-phase three-wire system) ±10%, 50Hz, instantaneous current is about 100A
Dimensions 900(L)× 450(W)×950(h) mm; (not include the handle
Remanence stability ≤±5%
Temporary load rate ≤30%
Input voltage 380V 50Hz
Demagnetization time < 5s
Weight about 120kg


Main functions:

Detection methods: support rod method, winding method, coil method

Magnetization method: AC magnetization, DC magnetization (HWDC), pulse magnetization

Demagnetization method: AC demagnetization using far away method demagnetization (attenuation method), AC demagnetization using ultra-low frequency demagnetization


Standard configuration:

Mobile host 1

Support rod probe 1 set

robe cable 1

Foot switch 1

Optional accessories

Fixed coil

Wound cable

HCDX-1500 Industrial MPI Magnetizing & Demagnetizing Equipment 0-1500A Continuous Adjustable Current Quick Connector Probe Magnetic Inspection DeviceHCDX-1500 Industrial MPI Magnetizing & Demagnetizing Equipment 0-1500A Continuous Adjustable Current Quick Connector Probe Magnetic Inspection DeviceHCDX-1500 Industrial MPI Magnetizing & Demagnetizing Equipment 0-1500A Continuous Adjustable Current Quick Connector Probe Magnetic Inspection Device
